Harvest Woburn Ultra-Low Profiling Bed
★ Rated 5.0 on Google (80+ reviews)
✔ Speak directly to our expert team before you buy
✔ Ongoing support for the life of your product
£1,880.00 – £2,197.00Price range: £1,880.00 through £2,197.00
Harvest Woburn Ultra Low Bed has been upgraded to a higher quality specification and now comes with auto-regression as standard.
With unique features allowing the platform to be lowered 67mm off floor level, the Ultra-Low Bed provides user safety and reliability.
Being able to lower to just 67mm from floor level, the bed is built for use without the need for side rails. Should the user be inclined to roll whilst in bed, and potentially fall, the bed reduces impact and allows the user to safely roll onto the floor, or a fall mat.
The Trendelenburg Function is supplied with the bed as standard, which allows the user to be positioned upright if necessary. This feature can create a seated effect if applied with the knee break.
Ideal for many environments within the Care and Community sectors, the bed is fully compliant with legislation.
Our Woburn Ultra Low bed is also available with an enclosed headboard and footboard in oak.
This bed is available for a quick delivery subject to stock levels. Should you require assembly, please choose our full installation service in the options below.
To find out more about our Static, Active and Hybrid Pressure Care Mattresses, Pumps and Optional Extras that can be purchased with this bed, click, “read more”.
Description
The Harvest Woburn Ultra-Low is a fully functioning four-section profiling bed that lowers to 67mm from the floor for patient safety.
Electronically setting of height, back rest or knee brake is simple, using the lockable handset. The Woburn Ultra-Low has a Trendelenburg function as standard.
Being able to lower to just 67mm from floor level, you need not have the side rails. Should a person be inclined to roll whilst in bed, and potentially fall, the bed reduces impact and allows a person to safely roll onto the floor, or a fall mat.
Optional bed extras include:
- Bed Length Extension
- Overbed Light
The Trendelenburg function comes with the bed as standard, allowing the person to be in an upright position if required. This feature can create a seated effect if applied with the knee break.
Ideal for many environments within the Care and Community sectors, the bed is fully compliant with legislation.
Our Woburn Ultra Low bed is also available with an enclosed headboard and footboard in both oak and walnut.
For detailed information about the compatible Static, Active and Hybrid Mattresses, Mattress Pumps, Bed Bumpers and Accessories, please click the appropriate tab.
Specifications
The table below shows the bed dimensions as well as the safe working load and maximum patient weight. There is a 5 year warranty with the Woburn Ultra Bed.
| Max. Patient Weight |
175kg / 27 Stone |
| Safe Working Load: |
185 kg / 29 Stone |
| Overall Length: |
2130mm |
| Overall Width: |
900mm |
| Adjustable Height: |
67mm-640mm |
| Angle of Back Rest: |
Up to 70° |
| Angle of Knee Rest: |
Up to 30° |
| Total Bed Weight: |
81 kg |
| Motor Unit Protection Class: |
IPX4 |
| Medical Product: |
Class 1 |
Harvest Woburn Ultra-Low Profiling Bed ~ The Manufacturers
At HWB Mobility, we carefully select the suppliers that we partner with so as to offer market leading products at affordable prices. We are proud to call Harvest Healthcare our partners and we work with them to bring you a wide range of quality0of-life-enhancing products.
An alternative to the Woburn Ultra Low is the Community Low.
Static Mattresses
HWB Mobility supply a wide range of Harvest Healthcare static mattresses to accompany your Cadence Profiling Bed, designed with comfort, pressure relief and weight distribution in mind.
Varying levels of protection are available, it all depends on the foam chosen and where the profile sections are cut.
They are cost-effective, high-quality mattresses designed for challenging environments where you need a mattress that is fully secure and fire resistant, available in both Crib 5 and Crib 7 fire rating.
Community Mattress
The Community static mattress has been built with a high resilience, fire retardant foam. This foam allows for better pressure distribution making it very comfortable for the user.
It is suitable for patients at a medium risk of developing a pressure ulcer.
Some features include:
- ‘V’ Cuts to assist profiling
- High resilience, fire retardant foam base
- Maximum patient weight – 25 Stone (159kg)
The mattress is complete with a two-way stretch, vapour permeable, water resistant PU cover. Shaping enables profiling of the mattress and the ability to turn the mattress extends its life.
Dimensions: 2000mm x 900mm x 125mm
Maximum Patient Weight: 25 Stone/159KG
Risk Level: Medium
Prime Comfort Mattress
The Prime Comfort Static Mattress is a quality mattress made of high resiliency foam, therefore offering great pressure relief.
It still remains cost effective for any care environment. The foam is castellated for comfort and to facilitate air movement inside the mattress, reducing heat build up. The castellations are zonal for effective pressure relief.
The Prime Comfort Static Mattress is suitable for those at High Risk of getting a pressure ulcer. It holds a maximum patient weight is 28 Stone/177kg.
It comes complete with a two-way stretch, water resistant, anti-bacterial PU cover with welded seams and a crib 5 fire rating.
Dimensions: 2000mm x 900mm x 150mm
Maximum Patient Weight: 28 Stone/177KG
Risk Level: High
Prime Comfort Plus Mattress
The Prime Comfort Plus Static Mattress is an excellent static mattress, which provides great patient comfort.
Side wall construction encases the foam, enhancing stability for the patient and assisting in patient transfer. A castellated foam top allows excess heat to escape from beneath the foam, preventing the patient from overheating whilst laid on the mattress.
Benefits of the Prime Comfort Plus include:
- Excellent pressure redistribution
- Keyhole slots in the high density base to aid profiling
- Complete with a four-way stretch, vapour permeable, water resistant PU cover with welded seams
Risk Level: High
Dimensions: 2000 x 900 x 140 mm
Weight Capacity: 39 Stone/247 kg
Visco Multizone Mattress
The Visco MultiZone mattress is our enhanced static mattress. Positioning specialist foam “Zones” across key areas of the mattress allows for more pressure relief around the most vulnerable anatomical areas of the body. Memory foam visco-elastic, provides superior pressure redistribution, reducing the risk of developing a pressure ulcer.
As standard across our mattress range, the Visco MultiZone mattress is complete with a vapour permeable, water-resistant cover. It can be used for residents with up to a grade 2 pressure ulcer.
Comes with a 3-year warranty.
Dimensions: 2000 x 900 x 150mm
Max User Weight: 27 Stone (177 kg)
Risk Level: Very High
Cover (Available Separately): Four-way stretch, fully welded, water resistant, PU coated, polyester cover
Foam Type: High Density Combustion Modified Ether, U-Core Castellated Viscoelastic
Fire Retardancy: BS 7177 Crib 5
Cleaning Guidance: The mattress foam may be hand washed with mild detergent. Do not immerse in water. Allow to dry naturally.
Cover should be wiped down with hot water and mild detergent or machine washed up to 95oC and tumble dried.
Active Mattresses
HWB Mobility supply a wide range of active mattresses that are designed to meet your needs.
From overlays to replacements and bariatric mattresses we make sure that we have an option suited to you.
This Active Mattress Selector Chart by Harvest Healthcare may help you decide on the most suitable option for you. It is based on maximum user weight, mattress width and user risk.
If you still need advice, please get in touch with us on 0800 933 0389 or email us at chat@hwbmobility.co.uk.

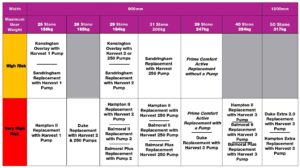

Active Mattress Selector Chart
Sandringham Active Mattress
The Sandringham Active Mattress is Harvest Healthcare’s basic replacement mattress with 18 alternating cells and an integral 50mm layer of foam providing an overall depth of 160cm. A pillow section has 2 static cells for stability and comfort. The cells are made of TPU material to reduce noise disturbance when cells alternately inflate and deflate on a 10-minute cycle.
The Sandringham Active Mattress comes with a 4-way stretch welded PU cover which is vapour permeable, water resistant and has a Crib 5 fire rating.
Being easy to maintain with interchangeable cells, this product provides the customer with excellent value for money when choosing an alternating mattress replacement to achieve pressure reduction for high-risk patients in long-term care.
It is compatible with Harvest pumps 1 and 2, allowing for a range of maximum patient weights.
Maximum Patient Weights:
Harvest 1 Pump: 25 Stone / 158kg
Harvest 2 Pump: 29 Stone / 184kg
Dimensions: 2000mm x 900mm x 160mm
Pressure Relief Risk Level: High
Hampton II Active Mattress
The Hampton II is Harvest Healthcare’s durable active replacement mattress, designed for the prevention and management of pressure ulcers. It is recommended for use by patients at very high risk of developing pressure ulcers and supports the treatment of up to stage 4 pressure ulcers.
It has 20 cells made of Nylon with a TPU lining to reduce noise when the cells inflate and deflate and a pillow section for patient stability.
The connector has a transport cap to maintain the air pressure within the mattress for easy patient transport arrangements. When using the transport cap, the mattress will stay inflated for approximately 24 hours. For rapid deflation of the system, simply pull open the CPR and disconnect the pump.
The mattress comes with a 4-way stretch welded PU cover, which is vapour permeable and water resistant, and it has a Crib 5 fire rating.
The Hampton II mattress is an all-rounder for comfort and pressure area care solutions.
The mattress is available in 900mm and 1050mm widths.
It is compatible with all of the Harvest pumps, allowing for a range of maximum patient weights.
Maximum Patient Weights:
Harvest 1 Pump: 25 Stone / 158kg
Harvest 2 Pump: 29 Stone / 184kg
Harvest 250 Pump: 31 Stone / 200kg
Harvest 3 Pump: 40 Stone / 254kg
Dimensions: 2000mm x 900mm x 200mm
Risk Level: Very High
Mattress Weight: 8kg
Balmoral II Active Mattress
The Balmoral II Replacement is Harvest Healthcare’s top of the range pressure reducing active mattress used in the prevention and management of pressure ulcers. It is recommended for use by a patient who is at very high-risk of developing pressure ulcers, and supports the treatment of up to stage 4 pressure ulcers.
It is made up of 27 individual cells: 23 alternating air cells and 4 static pillow section cells, on a 50mm thick layer of foam. Cells are made of pure PU and are all interchangeable for ease of repair and cleaning. In addition, the mattress is designed to ensure bedrail compliance on any UK manufactured profiling bed.
The connector has a transport cap to maintain the air pressure within the mattress for easy patient transport arrangements. When using the transport cap, the mattress will stay inflated for approximately 24 hours. For rapid deflation of the system, simply pull open the CPR and disconnect the pump.
The Balmoral II has been designed to protect the end user in the event of a power outage; foam is fitted underneath the alternating cells.
The mattress comes with a 4-way stretch welded PU cover which is vapour permeable, water resistant and has a Crib 5 fire rating.
It is compatible with Harvest Healthcare’s pumps 2, 250 and 3.
Maximum Patient Weights:
Harvest 2 Pump: 29 stone / 184kg
Harvest 250 Pump: 31 stone / 200kg
Harvest 3 Pump: 40 stone / 254kg
Dimensions: 2000(L)mm x 900(W)mm x 150(H)mm
Risk Level: Very High
Weight: 10kg
Duke Active Mattress
The Duke Active Mattress is a high-quality mattress.
Designed for a frailer person who could be vulnerable to developing pressure ulcers, the system provides a very high degree of pressure relief whilst protecting the patient.
It is recommended for use by a patient who is at very high-risk of developing pressure ulcers, and support the treatment of up to stage 4 pressure ulcers.
The mattress is made up of 30 individual cells: 25 alternating air cells and 5 static pillow section cells. All air cells are individually replaceable should any damage occur.
A 50mm integral foam base rests beneath the removable cell structure, providing more support and redistributes pressure where necessary. The two structures are separated by a water resistant, PU cover – enabling both compartments to be removed for decontamination purposes.
The welded seams of the cover also prevent water ingress, and further protect the inner structure of the mattress system. The cover has a Crib 5 fire rating.
It is compatible with Harvest pumps 2 and 3.
Maximum Patient Weights:
Harvest 2 Pump: 26 Stone / 165kg
Harvest 3 Pump: 39 Stone / 247kg
Dimensions: 1980mm x 900mm x 140mm
Risk Level: Very High
For information about Harvest Healthcare’s compatible Mattress Pumps, please see the Mattress Pumps Tab.
Hybrid Mattresses
HWB Mobility offer Harvest Healthcare’s hybrid mattress.
Hybrid mattresses enable carers to step up or step down the treatment of patients by either adding or removing a pump.
This offers flexibility when caring for patients that could become at risk of a pressure ulcer. It means that people can benefit from the high levels of comfort that foam offers and the pressure relieving abilities of an active mattress when needed.
Using one mattress for both functions helps reduce logistic costs and avoids disruption for the person using it as there is no need to change the mattress.
Prime Comfort Active Mattress
The Prime Comfort Active mattress combines all the benefits of our Prime Comfort Plus mattress, plus so much more. The addition of cells give the ability to step up or step down patient care with or without a pump.
Benefits of the mattress include:
- ‘U’ shaped based for roll prevention
- Compatible with all the Harvest pump
- Quiet operation
- Complete with fully welded cover
Built using both static foam and alternating air cells, the mattress can be used with or without the pump. This combination means patients at a very high risk of developing pressure ulcers, will still be protected when the mattress is deflated.
The Prime Comfort Active mattress is available with the following Harvest Healthcare pumps:
Harvest 1 Pump
Harvest 2 Pump
Dimensions: 2000mm x 900mm x 140mm
Maximum Patient Weight: 39 Stone/247kg
Mattress Weight: 9kg
For information about Harvest Healthcare’s compatible Mattress Pumps, please see the Mattress Pumps Tab.
Mattress Pumps
Harvest 1 Pump
The Harvest 1 Pump is Harvest Healthcare’s manually operated pump.
It is ideal for use in community and care home settings as it has a simple interface with a dial.
It is easy to connect and disconnect and is lightweight, creating ease of use for the carer.
Compatible with the Kensington overlay, Sandringham replacement, Hampton replacement and the Prime Comfort Active mattresses.
Harvest 250 Pump
Harvest 250 pump is our mid-range pump designed to provide controlled compressed air to a pressure care mattress.
The inflated cells within the supplied mattress provide an option of alternating or constant low pressure functions designed to reduce interface pressure on the skin and therefore reduces risk of the development of pressure ulcers.
It is ideal for use in both community and nursing home settings. A range of features are available with the Harvest 250 including alternating, constant low pressure, max inflate, comfort control and a seated function. Audible, visual, power failure, cycle fault and low pressure alarms, and LED display.
The Harvest 250 pump fits all Harvest Healthcare active overlays and standard replacement mattresses.
Harvest 3 Pump
The Harvest 3 is Harvest Healthcare’s high-end digital pump.
It is ideal for use in all settings including acute as it caters for bariatric products and more complicated clinical needs.
It is easy to use and features an L.E.D display, lock-out mode, static mode, maxi-firm mode and four cycle times. It also has visual and audible alarms for low pressure and power failure.
It has a very high capacity, fitting all Harvest active mattresses including their bariatric range.
Accessories

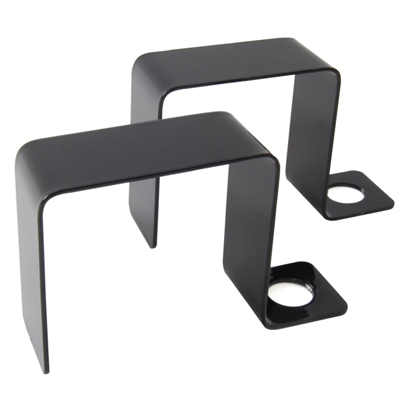

Bed Wall Spacers (Pair)
These spacers are designed to reduce the risk of the bed being placed too close to the wall and colliding with power sockets or other features.
This can be costly to fix and often requires an emergency call out, the Bed Wall Spacer can eliminate these costs.
It increases safety by reducing the risk of electric shock due to socket damage.
The Bed Wall Spacer also protects the bed chassis from damage if being operated against window sills/skirting boards or other features, which can be expensive to fix.
The spacer can be fitted to any corner of the bed within minutes tool-free.
It is designed to be fitted to the bed at any point where the bed would come into contact with a wall and should be kept at a safe distance and reduce the possibility of collision.
Grab Handle
The Grab Handle is a device used to assist the user when getting in and out of bed.
Handles fit securely to the bed platform, providing the weighted support necessary when in use.
Side rails don’t have to be removed whilst it is in use.
Emergency Bed Lower Kit
A necessity for all owners of the Woburn Bed Range, the Emergency Bed Lower Kit is to be used in the event of a power failure on a bed.
Please note, if in the event of an emergency, a bed is set in the profiling position, it will need to be lowered before beginning evacuation.
Mesh Side Rails
The Mesh Side Rail system is intended to be used to provide security to the occupant of the bed whilst the bed is raised to a correct height for giving care.
The Woburn Ultra-Low bed is designed to be lowered to the floor when the occupant in the bed is left unattended, this is to reduce the risk of a fall from the bed or potential entrapment from a side rail system.
When the bed is lowered to the floor it is recommended the side rail system is locked down by connecting the two halves of the plastic buckle at the centre on the outside edge.
It can be used with the enclosed head and foot boards with some adjustments.
Ultra Low Bed Extension Piece
Extends the length of the bed by an additional 200mm to counter the feeling of entrapment experienced by some.
Mattress Length Extension
To be used in conjunction with the Ultra Low Bed Extension Piece.
• Foam inserts extend the mattress by 200mm
• Supplied with a vapour permeable waterproof cover
• Used in conjunction with the bed extensions
Overbed Table
The Overbed Table is designed for use with profiling beds, providing users with a surface area to eat, read or place their belongings.
Height adjustable, easy to use and built with an automatic safe lock, the table is fit for purpose for a variety of users.
Connoisseur Overbed Table
The Connoisseur Overbed Table is a high quality, two tier table.
Height adjustable, easy to use and built with an automatic safe lock, the table is fit for purpose for a variety of users.
2 vinyl wrapped trays allow for more usability and provide more space.

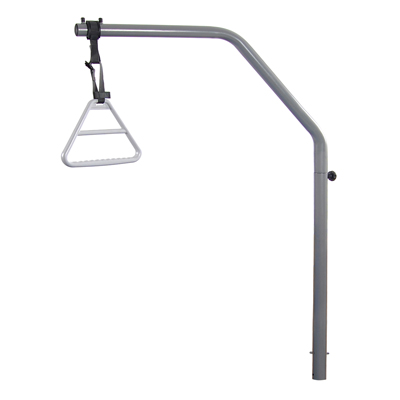

Lifting Pole
This Lifting Pole assists the user to sit upright in bed.
By holding onto the handle, which is supplied with the lifting pole, the patient is able to adjust themselves as required, with little or no aid from a carer.
Should extra support be needed, we also supply Grab Handles, which fit to the bed frame.
